A 90W label alone does not prove that an adapter belongs with your ResMed machine. You will be able to identify the device, compare the original electrical ratings and connector, check compatibility with humidification, and decide whether a replacement is safe for use on Coimbatore’s 230V, 50Hz supply.
Key takeaways
- Check the machine label for S9 identification before buying an adapter.
- Match voltage, connector polarity, plug size, and wattage—not wattage alone.
- Confirm the 90W supply suits your S9 machine and connected accessories.
- Test the replacement gently; stop if the plug does not seat smoothly.
Identify the ResMed Machine Before You Buy an Adapter
Identify the platform from the machine label, not from the ResMed logo or a 90W number. An S9 unit will say “S9” or name an S9 variant on the top or rear casing, with a serial or model label on the underside.
Its housing is a broad, low-profile unit designed to connect to a separate external power brick.
- Check the top and rear casing for “S9,” “S9 AutoSet,” “S9 Elite,” or “S9 VPAP.”
- Turn the machine over and photograph the underside label, including the model and serial numbers.
- Inspect the power socket and low-voltage cable. Note its position, connector shape and dimensions; do not assume a plug fits because it enters the socket.
- Compare the housing and label with the alternatives: AirSense 10 and AirSense 11 use different casing labels and power systems; AirMini is a compact travel device with a different connector arrangement; Astral ventilators have different casing, model labels and power connections.
- Photograph the original adapter label, including its output, input and model information, before ordering.
A familiar ResMed mark proves only the manufacturer. A listing that says “ResMed power supply” does not establish compatibility, and neither does a 90W figure alone. Match the S9 platform, connector and electrical details before buying.
Which S9 Machines and Accessories Can Use the 90W Supply?
ResMed S9 power unit compatibility extends across S9 CPAP, APAP and VPAP variants when the machine label and connector match. The required output is 24V DC at up to 3.75A, providing the 90W capacity specified for the S9 system.
| Supply or setup | What it supports | Decision |
|---|---|---|
| 90W S9 supply | S9 blower with compatible accessories | Correct match when the label, connector and polarity agree |
| 65W supply | Blower-only operation in some circumstances | Not an equivalent for a complete S9 setup |
| Generic 24V adapter | Voltage may match | Reject unless current, wattage, polarity and connector also match |
The 90W rating matters when you attach an H5i heated humidifier or heated tubing because those functions add electrical load. A 65W supply might run the blower, yet fail to support heating reliably; do not treat it as interchangeable with the S9 unit.
Tell the seller whether you use an H5i, heated tubing or backup power. Humidification and tubing heat can increase battery requirements, and a battery or general-purpose DC converter is not automatically suitable for the S9’s 24V input.
Do not assume this supply fits an AirSense 10, AirSense 11, AirMini or Astral machine. ResMed used different connectors and power systems across these product families, so the S9 name on the machine and the matching connector matter more than a familiar logo or a 90W figure alone.
Compare Every Adapter Specification, Not Just the Wattage
Match the original brick and the replacement line by line before ordering; a 90 W figure alone does not prove compatibility. Read the original label on the power brick, photograph it, and compare these fields:
| Label | Original S9 adapter | Replacement must show |
|---|---|---|
| Output | 24 V DC | 24 V DC |
| Current | Up to 3.75 A | Up to 3.75 A |
| Power | 90 W | 90 W |
| Input | 100–240 V AC | 100–240 V AC |
| Frequency | 50/60 Hz | 50/60 Hz |
| Polarity | The marked polarity symbol | The same polarity |
| Connector | Same dimensions and shape | Exact match |
The connector needs more than a matching appearance. A barrel plug with the wrong inner and outer dimensions, centre polarity, or contact arrangement can fail to power the S9 or damage it, even if it fits loosely. Do not substitute a generic CCTV, router, laptop, or LED-strip adapter based only on “24 V.”
Check the mains plug as part of the resmed s9 adapter specifications in coimbatore. Confirm an India-compatible plug, or confirm that a detachable cord accepts a suitable earthed Indian plug adapter.
Coimbatore’s nominal supply is 230 V AC at 50 Hz, so a transformer is normally unnecessary when the label confirms 100–240 V AC and 50/60 Hz. A travel plug changes physical fit only; it cannot correct voltage, frequency, polarity, current, or wattage.
Connect and Test the Replacement Without Forcing the Plug
Connect the low-voltage cable to the S9 machine first, then connect the mains cord to the power brick and wall socket. Do not twist, force or repeatedly reseat the connector. A plug that enters the socket does not prove correct polarity or electrical compatibility.
Before connecting anything, inspect the complete supply:
- Check the power brick, low-voltage cable and mains cord for fraying, cracked insulation, exposed conductors, loose connectors and heat damage.
- Stop using the supply if you find damaged wiring. Do not open the adapter or repair it with tape; have a qualified technician inspect it.
- Route the cable away from walkways, bedding, water and pinch points. A trapped cable can fail under pressure or become a trip hazard.
- After confirming the connection is secure, switch on the wall socket and check for normal S9 startup.
- Stop immediately if the brick becomes unusually hot, smells of burning, buzzes, causes repeated shutdowns or displays an incompatible-power-supply warning.
If a verified compatible supply leaves the machine dead, do not keep replacing adapters. Check the wall outlet, blocked air filter, water ingress, attached humidifier and blower for faults, and arrange a qualified inspection of the S9 and mains circuit.
Use This Coimbatore Buying Checklist Before Placing the Order
Answer “is resmed s9 power supply right for my machine in coimbatore” in this order before buying an s9 cpap replacement power supply:
- Confirm that the machine label says S9.
- Match 24V DC output, up to 3.75A and 90W capacity.
- Verify input of 100–240V AC at 50/60Hz. Coimbatore’s 230V, 50Hz mains fits this range.
- Confirm polarity, connector dimensions, connector shape and India-compatible plug arrangement. A travel plug changes physical fit only; it cannot correct wrong voltage, frequency, wattage or polarity.
- State whether an H5i humidifier, heated tubing or battery setup is attached.
| Option | Why it is not automatically suitable | Decision |
|---|---|---|
| Battery pack | Its 24V output, current capacity and heating-load support may not match the S9. | Use only an S9-rated backup setup. |
| DC converter | Conversion quality, isolation, polarity and connector size can differ. | Verify every electrical specification. |
| CCTV, router, laptop or LED-strip adapter | A similar 24V label does not prove medical-device suitability, current capacity or connector compatibility. | Do not substitute by appearance. |
Heating increases the load, so a blower-only setup does not establish compatibility with an H5i or heated tubing. Give these details to Breathe Support System- 08048034527 so the machine and accessories can be checked together. If the label is unreadable or the original adapter is missing, request an inspection before ordering.
Related product

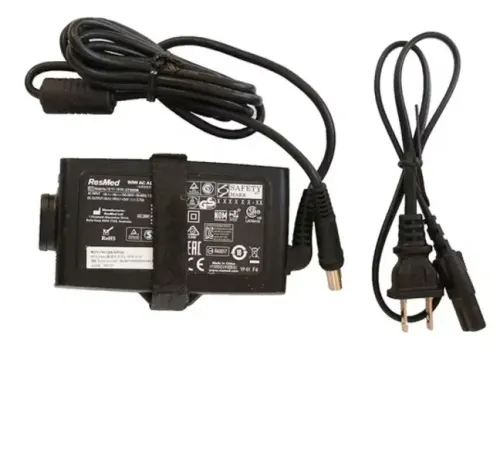

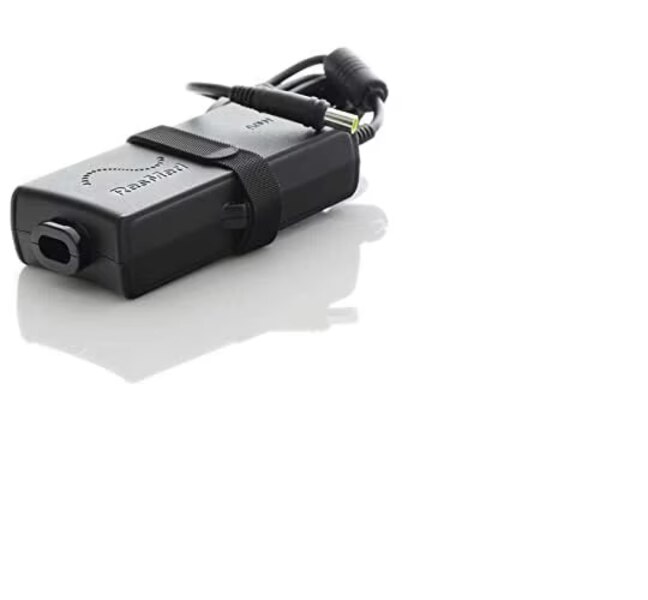

 | Accessories ₹10355 Replacement power supply unit plus power cord for the ResMed S9 series of CPAP machines. This product includes the cable adapter. View product → |
Frequently asked questions
How do I identify a ResMed S9 machine before buying a power supply?
Check the top or rear casing for “S9” or an S9 variant name, then confirm the serial or model label on the underside.
Which ResMed S9 machines can use a 90W power supply?
Use a 90W supply only after confirming that your specific S9 machine and connected accessories are listed as compatible by ResMed or the supplier.
Which ResMed S9 adapter specifications should I compare?
Compare output voltage, current, wattage, connector dimensions, polarity, input range, cable condition, and the plug supplied for use in India.
How do I connect and test an S9 replacement power supply?
Turn the machine off, align the connector without twisting or forcing it, connect the adapter, and check whether the machine starts normally.
What should I check when buying a ResMed S9 power supply in Coimbatore?
Provide the exact machine model, request the adapter’s output label and connector details, confirm return terms, and check that the plug suits your socket.
